Ballast Water Management System
We want to protect
this wonderful natural world
and pass it on to the next generation.
At MIURA, we will cherish those wishes and use the whole strength of the company to work towards our
mission of “Helping customers all over the world in energy conservation and
environmental preservation.”
One major support for those efforts is the ballast water management system
(BWMsS),
which contributes to the preservation of the marine environment around the
world.
Our Ship Machinery Department has over fifty years of proven results
and experience and is playing a key role as we utilize our technology and
the trust in
MIURA
and put all our efforts into the achievement of our aims.
In October 2019, MIURA ACQUIRED USCG (United States Coast Guard) type approval, for which preparations had been underway, and became the first Manufacturer in Japan to obtain such approval for the filtration method with UV treatment. Looking to the future, we will continue to work to conduct a range of thorough checks in order to allow us to respond to the respond to the demands of our customer from global standpoint, and offer safer products that provide greater peace of mind.
MIURA HK 200
MIURA HK 300
MIURA HK 450
MIURA HK 600
MIURA HK 900
We have MIURA HK 300u and MIURA HK 450 available with us and can arrange more different models and other company like ALFA LAVAL, HYDE GUARDIAN Etc...
Environmentally friendly system with a uniquely developed filter and UV
reactor combination
The greatest feature of the Miura BWMS is its structure,
which
uses a uniquely developed filter to capture microorganism of 50 um or larger
from the ballast water
and then
uses a UV reactor to irradiate the organisms with ultraviolet (UV) light to
sterilize them.
It is an
environmentally friendly system with no impact on the organisms where the
treated ballast water is discharged,
because
no active substances (chemicals) are used.
It can
continue to exhibit its performance in each of the different water qualities of
sea water,
brackish water and fresh water.
The obligation to install
a ballast water management system
Ballast Water Management Convention came into force on
September 8, 2017. This means that the installation of a “ballast
water management system” is required for all newly constructed
vessels that are completed from September 2017 onwards.
Furthermore, all vessels currently in service are required to
complete the installation before the renewal of their IOPP
certificate, which is between September 2017 and September
2024. MIURA has sold BWMS since 2014 and has built up a
proven record of their installation on newly constructed vessels
and
their retrofitting on vessels already in service.
Ballast
water management systems
to
maintain the marine ecosystem
Miura BWMS is a clean type of system that combine a filter and
sterilization
using UV light. One feature of the method of sterilization using UV light
is that
no active substances are used during the treatment, so there is no impact
on the
organisms where the treated ballast water is discharged.
We developed a filter for the management system that can reliably capture
organism of 50 um or larger and added a multi-stage cleaning function with
high maintainability. The medium pressure UV pipe used in the UV
sterilization
was newly developed to save electricity and extend the service life and the
optimal
sterilization performance was achieved by using the illumination intensity and the flow rate to calculate
and control the amount of irradiation.
Environmentally friendly product creation
MIURA aims to be the best partner of heat, water and the
environment and has acquired ISO 14001 certification from
2007. We are promoting environmental activities around the
three pillars of the environmental contribution from our
products, the consideration for the environment at our offices
Sea water and factories, and our social contribution related to the
environment. In our BWMS too, in addition to the
environmental contribution from the products themselves, we
also give consideration to environmental conservation during
our
manufacturing processes.
An
original cleaning system to maintain the capture performance of the filter
MIURA
has developed a filter with an innovative structure that makes filter cleaning
possible at the same time as the capture of the organisms in the ballast water.
With MIURA’s unique multi-stage cleaning function, the maintainability and
performance are supported and the capturing function of the filter is
maintained. The filter is always maintained in a clean state, so it does not
require the time and effort of the crew of the vessel and the primary duties in
cargo handling can be performed smoothly.
Reliable
sterilization of organisms with a uniquely developed UV irradiation method.
MIURA started the installation of the independently developed BWMS from
2014. As we have accumulated proven results in the installation of the system,
we have also received favorable evaluations of the sterilization performance
for S-sized and smaller organisms and for fungi. We are implementing repeated
improvements to reduce power consumption and extend the service life and are
aiming for further quality improvements. A cleaning function has been included
inside the UV reactor to reduce the
maintenance work that the crew of the vessel must perform.
Proportional control operation to realize reduced
electricity consumption and longer service life
The short service life of UV lamp was previously the disadvantage
of UV irradiation, but we have improved this with a
method of operation that uses proportional control. A UV
sensor monitors the UV illumination intensity and the amount
of UV irradiation is controlled. This saves electricity and
extends
the service life.

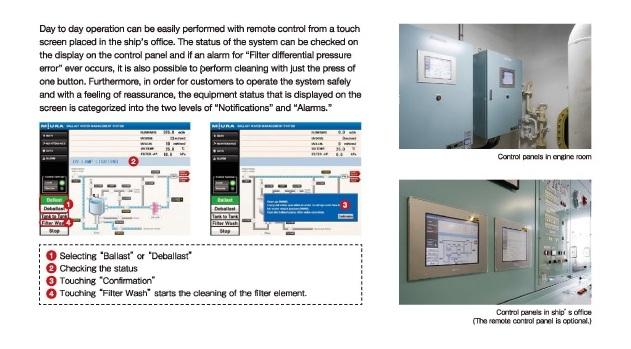

The
touch screen type control panel easily operated from the ship’s office
